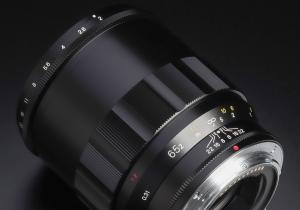

Voigtlander Z 65MM F2 MACRO APO USED

Apochromatic design

This design thoroughly eliminates various aberrations including axial chromatic aberrations and pursues the ultimate performance in terms of resolution and contrast reproducibility.

Floating mechanism employed

The lens employs a floating mechanism that independently moves a lens group according to the focus distance to ensure reliable imaging quality for subjects at the minimum focus distance of 31cm (reproduction ratio of 1:2) through to infinity.

Beautiful bokeh effect with 10 aperture blades

A 10-element aperture is used to make the opening formed by the diaphragm blades closer to a circular shape. Out-of-focus areas are rendered naturally, and point light sources are rendered with a soft, rounded bokeh effect.

Designed exclusively for the Nikon Z mount

Optics optimized for the image sensors of mirrorless cameras with the Nikon Z-mount are implemented. The lens has a full-frame image circle and can be used with both full-frame (Nikon FX format) and APS-C size (Nikon DX format) mirrorless cameras.

Manual focus for reliable focusing

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

List of supported models and firmware
Please use the latest firmware because the performance may not be as good as the firmware listed or some of the functions may be limited.

Corresponding body and firmware *2

*2　If the Firmware is less than the ones listed above, the performance may not be exhibited or some functions may be limited, so please use the latest Firmware. Please check the instruction manual of the body for checking the Firmware of your body and obtaining the latest Firmware.


*This product is developed and manufactured under a license agreement with Nikon Corporation.

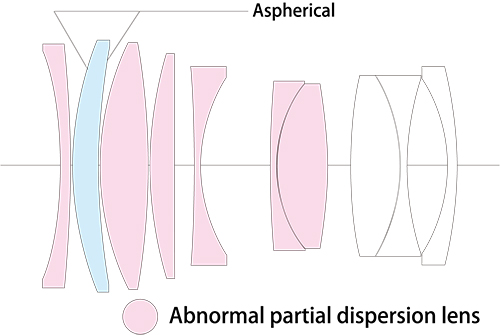

Lens diagram

Focal Length

65mm

Aperture Ratio

1 : 2

Minimum Aperture

F22

Lens Construction

8 groups 10 elements

Angle of View

38.0°

Aperture Blade

10 elements

Minumum Focus

0.31m

Maximum reproduction ratio

1: 2

Diameter×Length

φ78.0×88.8mm

Filter size

φ67mm

Weight

618g

Hood

Screw-in hood includes

Aperture ring

Available (Manual Setting)



Electrical Contact

Available *1

Exif Data

Available *1 *2

Focusing support function 1

Color changing of the focus point frame

Focusing support function 2

Peaking function focusing

Focusing support function 3

Magnification button on camera body

In-body image stabilization

Possible(only on camera with in-body stabilization)

Corresponding sensor size

full size
